Description

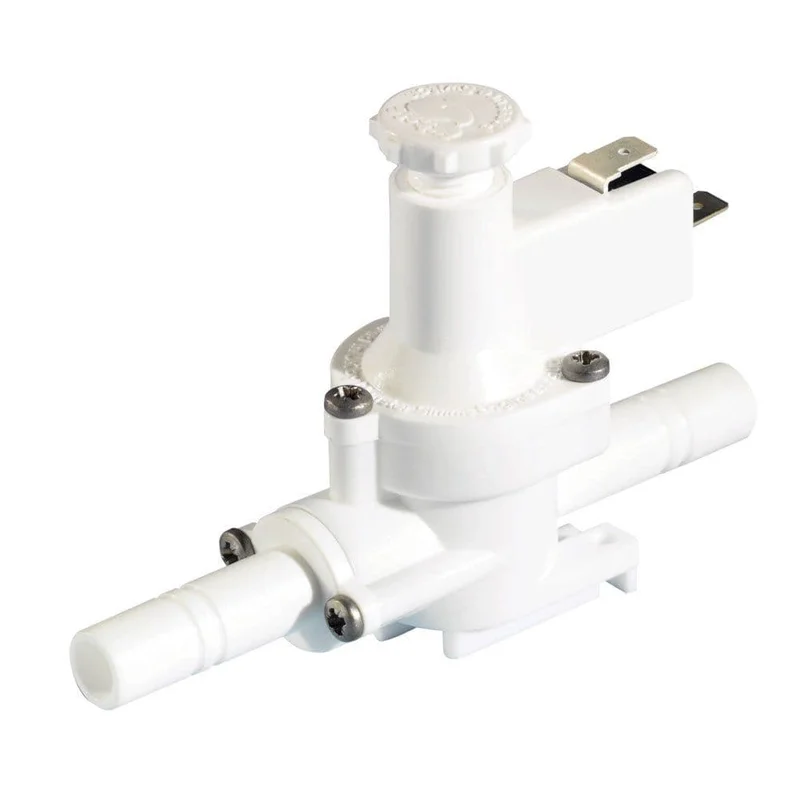

Whale Inline Pressure Switch

The Whale Inline Pressure Switch switches the pump on or off by detecting the change in pressure in the water system. It is the ideal water pressure switch specifically designed for your caravan, motorhome, or campervan.

Fitted in-line, the Whale Pressure Switch provides a simple and convenient way of creating a pressure system with an electric pump that does not have its own switch. The Pressure Switch is normally fitted close to the pump on discharge side (before any in-line Y piece). The Pressure Switch detects the opening and closing of any tap in the system. An in-line filter is recommended on the inlet side to prevent dirt from entering the pump or switch.

Features And Specifications

• Detects change in water pressure
• inline- Fitted
• Normally fitted close to the pump, on the discharge side
• Controls the pump by sensing changes in system pressure.
• Current rating = 10amp: 12 V d.c. systems / 5 amp : 24 V d.c. systems
• Maximum Pressure: 2 bar (30 psi)
• Materials: body: acetal, seals and valves: Nitrile®, EPDM spring: phosphor bronze, fasteners: stainless steel
• Note: must be mounted in a vertical position
