Description
31 Litre Pressure Fill Underslung Fresh Water Tank Kit for VW Transporter T7 2025 Onwards L1 & L2 Campervan
Fits L1 & L2. Does NOT fit LHD or twin sliding door

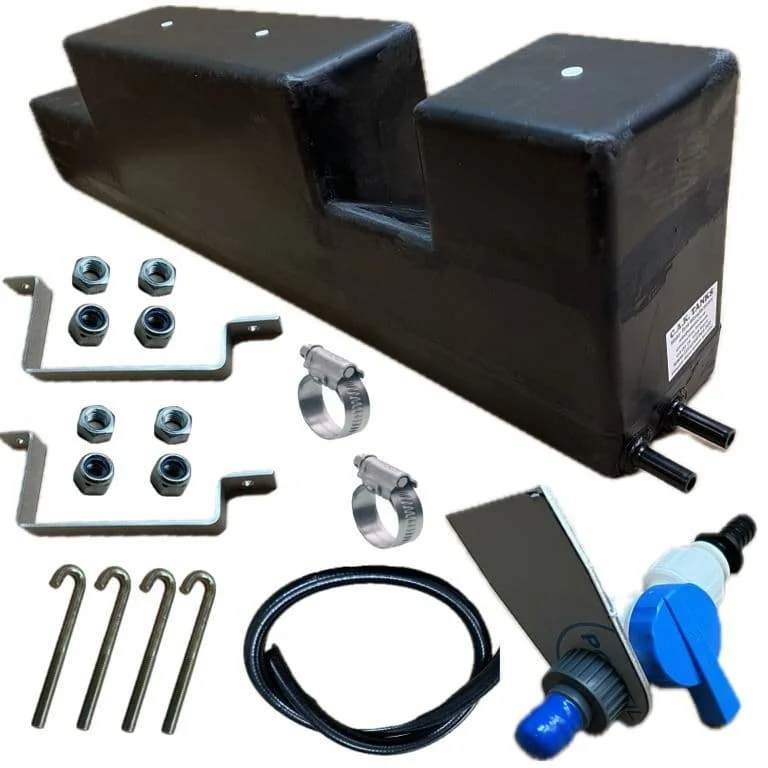

Kit includes:
- 1 x 31 litre water tank with pressure fill connections pre-welded in: 2 x 15mm (inlet/drain and outlet to pump) (Nut-in option available)
- Set of galvanised brackets with hookbolts, nuts and locking nuts
- Pressure fill valve with back plate and hose clips
- 12/13mm reinforced hose
This fresh tank is designed to fit on the driver side of the vehicle between the chassis and the sill behind the driver’s front step, rearwards. The raised central part of the tank fits up in between the cross members to touch the floor. There is a metal bracket on the inner sill of the vehicle that prevents the front corner of the tank sitting in position. This is an unused bracket and will need to be bent either forwards or backwards out of the way to allow tank to sit properly in position.
The tank is fitted using two identical brackets. Each bracket has one short leg and one long leg. The long leg sits on the chassis side of the tank and the short let sits on the sill side of the tank.
The rear bracket chassis side requires a 4” hookbolt hooked into an existing hole in the base of the chassis. The sill side requires a 3” hookbolt hooked into an existing oval hole in the inner sill directly opposite.
The front bracket chassis side requires a 4” hookbolt hooked into an existing hole in the base of the chassis. The sill side requires a 3” hookbolt and needs a hole to be drilled to position directly opposite opposing bracket hole.
Other options available:
- Fresh tank kit with Black, White or Grey Filler
- Waste tank kit
- Fresh and Waste tank kit pair
- Nut-fitting kit for fresh or waste
- Level sensor (Order MTT/G)
- Defrost element
- Shurflo pump
