Description
50 Litre Waste Water Tank Kit for VW Crafter 2017 Onwards FWD MWB Campervan
Front Wheel Drive Medium Wheelbase Models Only.
Waste Tank – Fittings Pre-Welded – Brackets and fixings
The waste tank is designed to fit longitudinally on the passenger side behind the fuel tank in front of the rear axle. Capacity of 50 litres.
Fixing kit supplied with 2 brackets, hookbolts and locking nuts.
Front bracket hooks one side into chassis side of cross member using 8 inch hookbolt. The handbrake side of the bracket hooks into existing hole in crossmember for handbrake cable using a 4 inch hookbolt.
Rear bracket will need 2 holes drilled into front face of cross member just in front of rear axle using 2 x 7 inch hookbolts.
Please note that the tank will need to be packed on the rear between tank and cross member with a 15mm pack on the hump of the tank. A block will be needed to the side of the hump of approximately 65mm. Packing is also needed on the front of the tank between the tank and the cross member of approximately 20mm to clear the brake pipe. Difference in packing height is to maintain slope of tank so it slopes slightly to the front for draining.
2 x 3/4 inch waste inlet fittings pre-welded to front face of tank on left hand side (to miss fuel tank).
Recommend the use of smooth bore supaflex hose which is ultra flexible and will not clog up with waste compared to convoluted hose- see our 19/20mm waste hose sold separately

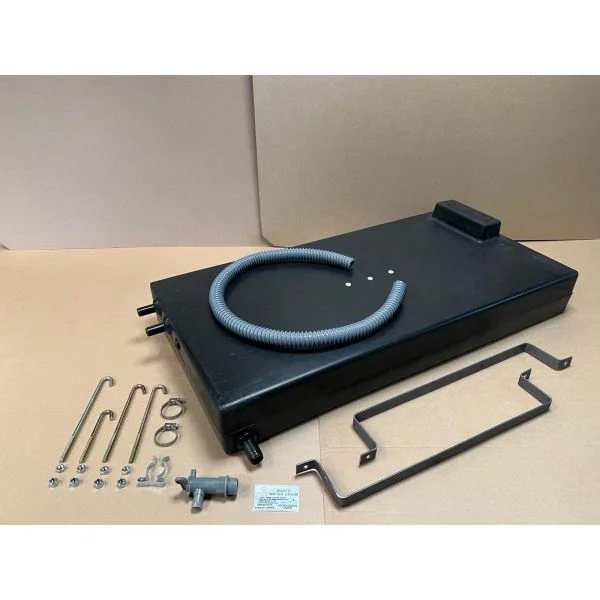

KIT CONTAINS:-
– 1x CAK-078W Waste Water Tank 50 Litre with pre welded fittings (2 x 19/20mm inlets and 1 x 25mm drain)
– 1x Set of Custom made steel brackets. (Recommend painting with metal paint prior to installation)
– 1x Set of Hook Bolts for Brackets with locking nuts
– 1x 1 metre Remote Drain Tap Kit (Grey)
