Description

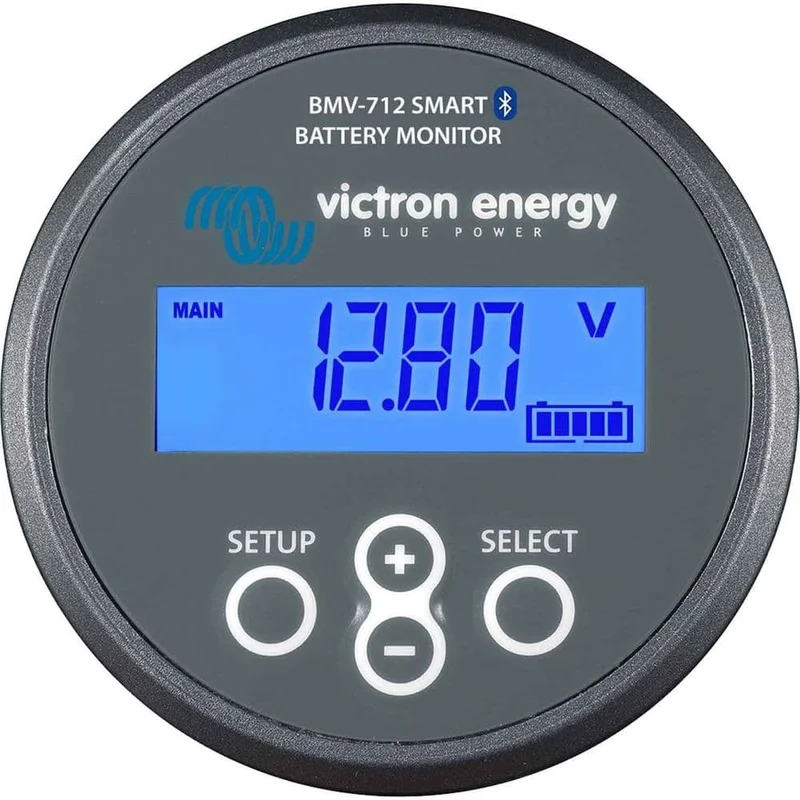

With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. With Bluetooth being implemented in most other Victron Energy products, wireless communication between products will simplify system installation and enhance performance. Can be used with the Victron Bluetooth app on your smartphone or other device to customise settings and monitor data.
Specifications
| Voltage [Filter] | 12V DC|24V DC|32V DC|48V DC |
| Brand | Victron |
| Voltage | 6.5V – 70V |
| Model | BMV-712 |
| Depth | 31mm (1.2″) |
| Temperature Range | -20°C +50°C |
| Diameter | Gauge: 63mm (2-1/2″), Body: 52mm (2″) |
| Operating Temperature | -40°C to +50°C (-40°F to 120°F) |
| Supplied With | Ammeter and Mounting bezel |
| Amps | ± 0.1 Ah |
Key Features
Battery voltage, current, power, ampere-hours consumed and state of charge
Remaining time at the current rate of discharge
Programmable visual and audible alarm
Programmable relay, to turn off non critical loads or to run a generator when needed
500 Amp quick connect shunt and connection kit
Shunt selection capability up to 10.000 Amps
VE.Direct communication port
Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
Wide input voltage range: 6,5 – 70V
High current measurement resolution: 10 mA (0,01A)
