Description

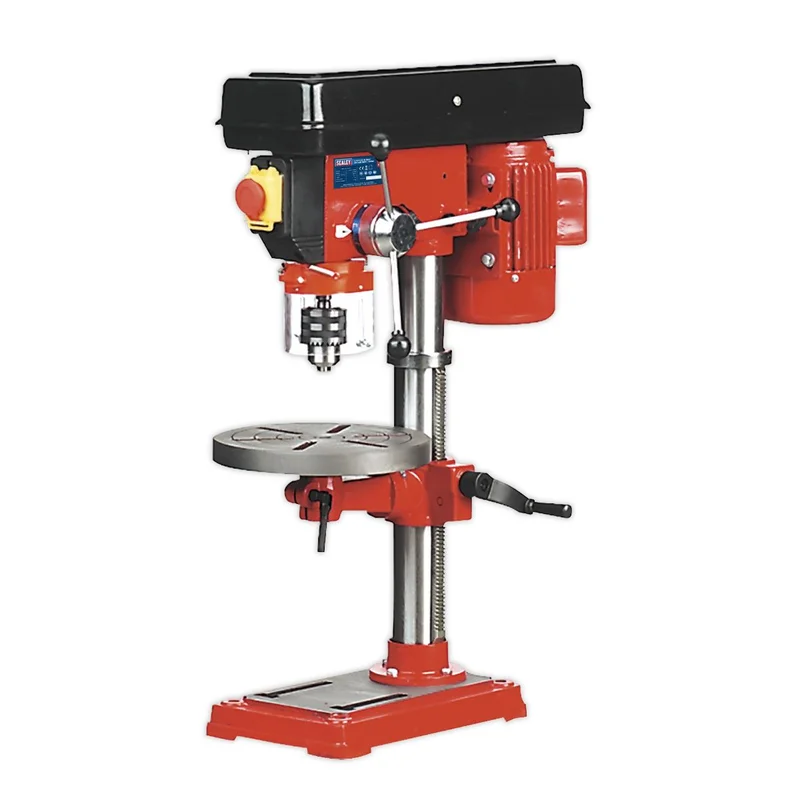

One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications. Meets Safety of Machinery (Safety) Directives 1992 (and amendments). Fitted with rack and pinion feed shafts with adjustable preset depth control for repetitive work. Features multiple speed drives and Morse taper spindle housing for accepting taper shank drill bits. Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments. Access to drive belts is denied during operation by mechanical protection. Mortise attachment available, order Model No. MA10.
One of a comprehensive range of bench pillar drills to suit light industrial, agricultural and woodworking applications.
Safety devices fitted include a no-voltage release switch, allowing insurance company approval for use in educational establishments.
Model No. GDM50B and up have Morse taper spindle housings for accepting taper shank drill bits.
All models offer multiple speed drives and access to drive belts is denied during operation by mechanical protection.
All drills are fitted with rack and pinion feed shafts with preset depth control for repetitive work.
Mortise attachment available, order Model No. MA10.
16mm(5/8″) Capacity chuck, MT2.
Height: 750mm.
Spindle Centre to Column: 127mm.
Motor Power: 220W, Input Power: 370W.
Column Diameter: 60mm.
Spindle Travel: 60mm.
Weight: 32kg.
