Description

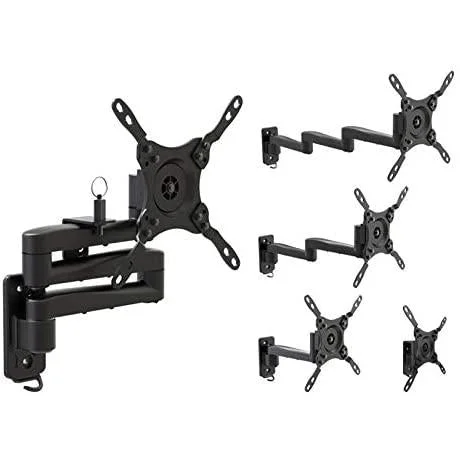

The OMP Cantilever TV Tilt & Swivel Mounting Bracket is a quick-release TV mount that allows easy removal of the TV storage, security or whilst travelling.
Designed by Maxview for leisure vehicles, the OMP Cantilever TV Mounting Bracket offers tilt and swivel adjustment.The unique design comes with 3 cantilever arms allowing a universal fitting. Simply add or remove arms/s to suit your installation.
Suitable for leisure vehicles such as motorhomes, campervans and caravans.
Features:
- To fit TV Screen – 13 – 40 inch
- Max Weight – 15KG
- VESA COMPLIANT – 75 x 75 to 200 x 200
- Fixings included – suitable for all leisure vehicles
- Spring-loaded catch for quick and easy arm removal for security or travelling
- Use with up to 3 Universal Arms and Dual Lock
- Tilt Adjustment – -15 to +15 degrees
- Swivel Adjustment up to 180 degrees
- Multi Arm Option – Easily add or remove arm/s
- Locking Arm – Keeps TV stable during travel
- Cable Management for a tidy installation
Dimensions
- Max width: 320mm
- Distance from the Wall: Min: 85MM – Max 622MM
- Max Height: 342mm
Specifications:
- Mount Type: To a Suitable Vertical Surface
- Fixing Type: Wood Screws (included)
- Installation: DIY or Professional
- Materials: Aluminium, Steel and Plastic
Additional items:
- TV Mount and Catch Lock additional mounting plate for M7441
- NEW Bonding Plate for use with M7441
