Description
Koven Lithium 270Ah Low Box Battery
Special Construction with Metal case- to fit under seat!!
With Prismatic Cells
Constant discharge Current of 200A- with 200A JBD BMS
Bluetooth function- Check state of charge, Cell Voltages etc
5 year Warranty

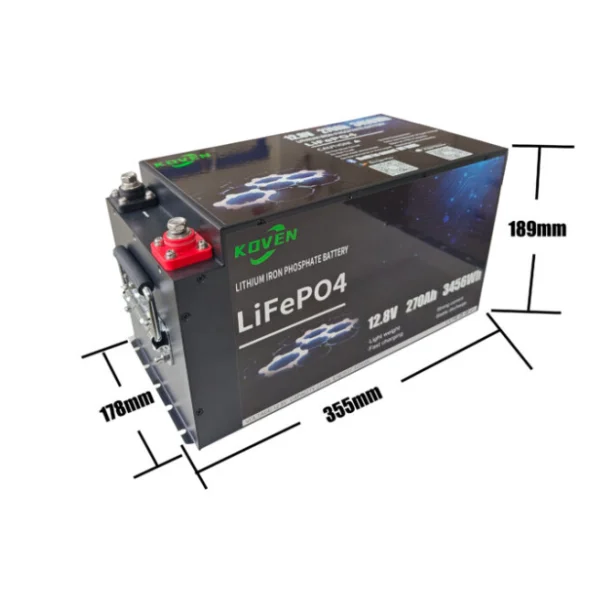

Dimensions (L x W x H): 355 x 178 x 189 mm
Model: KV-12270
Nominal capacity: 270 Ah / 3456Wh
Operating voltage: 10 – 14.6 V
Nominal voltage: 12.8V
Charging properties: CCCV / IU
Charging voltage: 14.4 V
Part type: Prismatic cells
Maximum charging current: 200A
Continuous discharge current: 200 A
Peak discharge cut-off current: 540 A (<3>BMS battery management system: integrated
BMS: JBD 200A
BMS battery management system: integrated
Bluetooth:BMS works with the XiaoXiang app, only data reading possible
Balancer：
Batteries fit in Ducato, Jumper and Citroen etc models. Batteries can be easily exchanged 1:1 for lead/AGM batteries.
Warranty: 5-year guarantee
Protection: IP65
Temperature range (discharge): -20 ~ 60 ºC
Temperature range (charge): 0 ~ 55 ºC
Temperature range (storage): -20 ~ 45 ºC
Connection type: Bolt Terminal
Guarantee: 5-year manufacturer’s guarantee
Weight: 26KG±0.5KG
See images for data sheet and batttery dimensions
