Description
Universal Press Support Block, designed to provide a stable, yet adjustable support base for vehicle hubs, and other complex shapes, to allow bearings to be pressed out with ease.
Supplied with adjustable, heavy duty, steel threaded columns, and an adjustable spacer block to provide additional support, side guard plates for added security and safety retaining screws prevent risk of movement of the block on the press.
Length: 285mm, width: 200mm, depth: 50mm, weight: 7.2kg (base block).

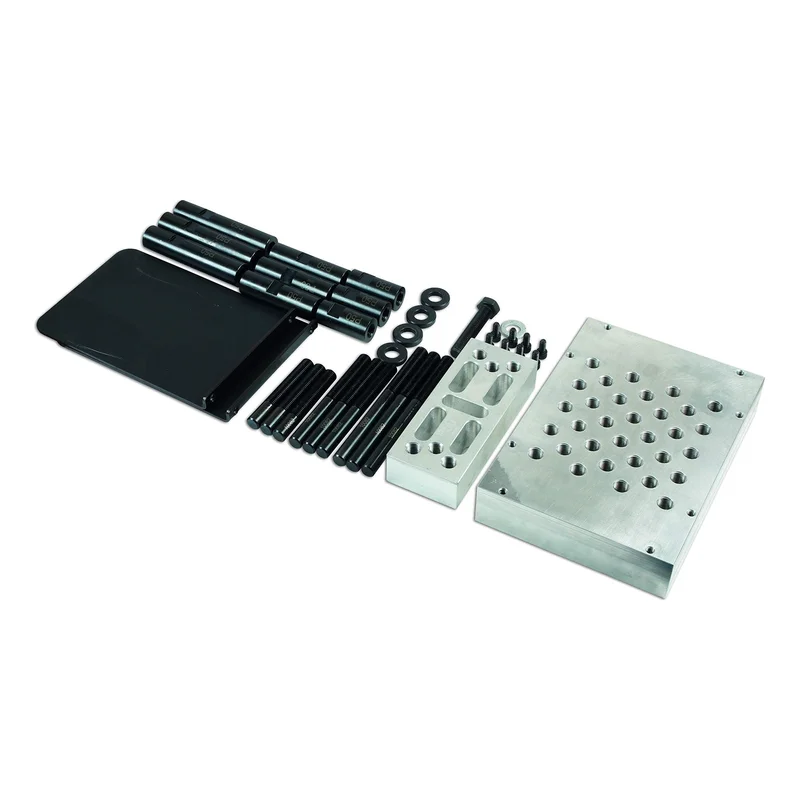

Contents: base block, spacer block, side guard plates (pair), heavy duty threaded columns with support sleeves for added strength: 3 x 110mm, 3 x 150mm, 3 x 190mm, c/w 4 x machined heavy duty washers.
CE & UKCA compliant. Supplied with Test Certificate of Conformance. SWL 50 Tonne.
Made in Sheffield from aircraft grade structural aluminium. EU Registered Design.
