Description
Ford Transit Custom 2024+ Campervan Underslung 52 ltr Fresh Tank external WHITE locking filler

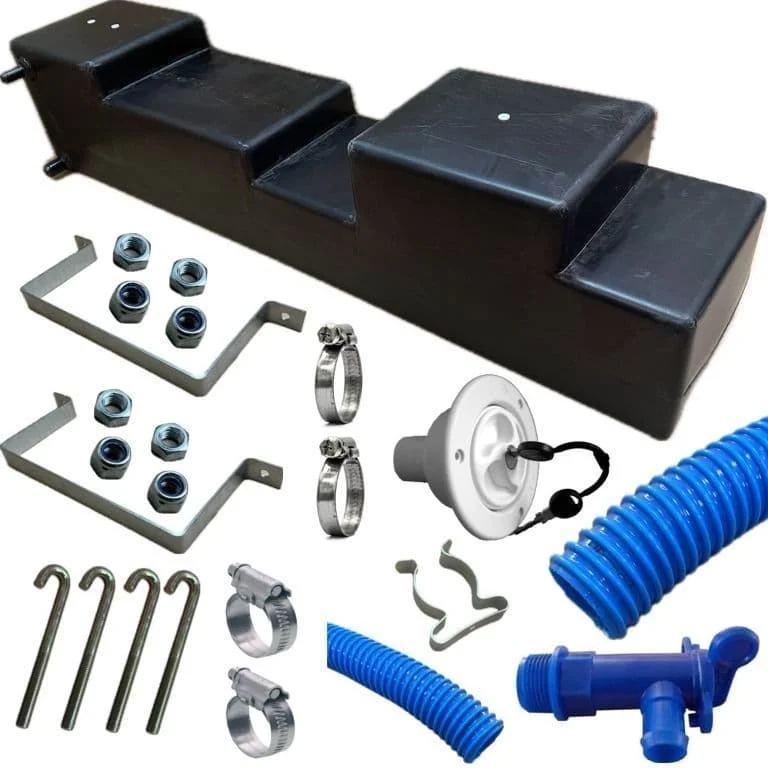

Full fitting kit supplied with galvanised steel mounting brackets and hookbolts with locking nuts
Welded in fittings – 40mm inlet, 25mm drain, 15mm outlet to pump
- CAK-239 52 litre water tank
- 2 x galvanised steel brackets with hookbolts and locking nuts
- 2m of 40mm hose with hose clips and external WHITE filler cap with 2 keys
- 1m of 25mm hose with blue drain tap and hose clips
Centrally fitted fresh water tank positioned down the middle of the vehicle between the fuel tank and the exhaust heat shielding. The rear of the tank sits just in front of the rear suspension arm cross member on an L1 and one section forward of this on an L2. (There is space on an L2 for an additional tank behind). It is positioned against wiring harness retaining strap stud on the exhaust side to leave minimal clearance from fuel tank. The front face of the tank is level with the Adblu tank, which leaves a large amount of space in front of the tank to fit heaters, etc.
Adjacent to the exhaust heat shielding is a wire harness in a ‘J’ bracket that is clipped to cross member. The ‘J’ wiring harness support bracket needs twisting slightly away to clear the tank.
This wiring may need to be unclipped from the cross member and cable tied to an adjacent hole nearer to heat shielding to allow tank to centre if this is pushing it too close to the fuel tank.
2 identical brackets used. Currently steel but will be galvanised shortly.
Rear bracket requires 2 x 4” hookbolts. These both hook into the front lip of the ‘J’ shaped cross member.
Front brackets require 2 x 4” hookbolts that need 9/10mm holes drilled both sides on rear face of cross member.
Connections are to rear offside face of tank. All variations available, eg pressure fill, gravity fill or waste.
