Description

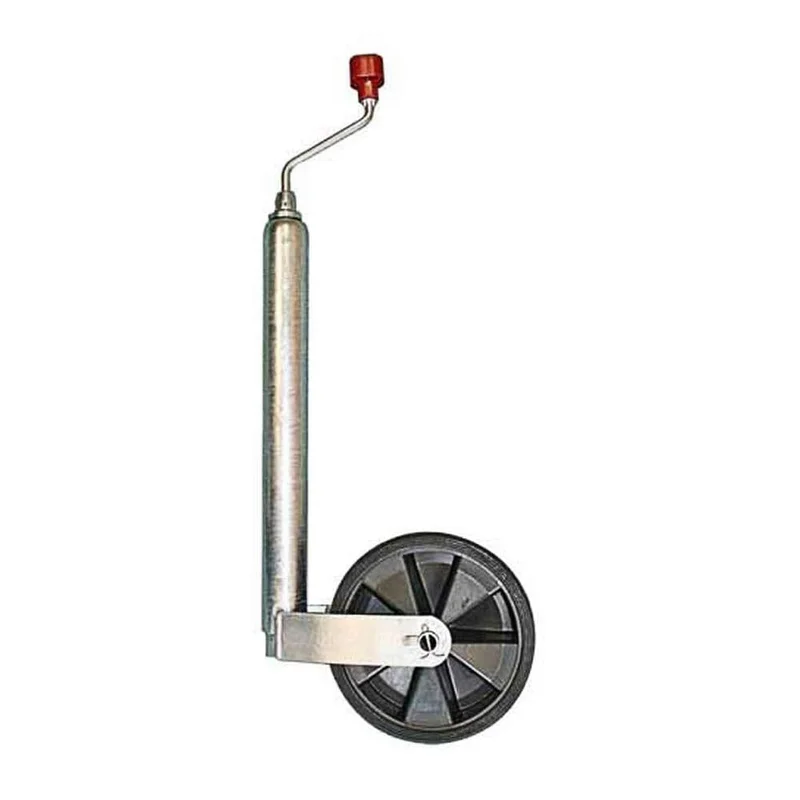

AL-KO Plus Jockey Wheel with a 48mm shaft and 215 x 65mm soft rubber wheel.
This jockey wheel is hot-dip galvanised with a high coat thickness of up to 70μm, offering a high level of protection against corrosion.
From the AL-KO ‘Plus’ jockey wheel range, this user-friendly model features a long design and built-in thrust bearing under the crank to facilitate operation.
It has a stationary nose weight of 150kg (max.) and a maximum nose weight of 90kg when manoeuvring, making it suitable for everyday trailer use.
This jockey wheel is from AL-KOs ‘Plus’ line, constructed to be entirely solid and robust, and fulfil the basic needs of trailer users. The Plus jockey wheel models boast a high quality finish, reliability, high quality materials and longevity.
– Stationary nose weight: Max. 150kg
– Nose weight (manoeuvring): 90kg
– Wheel: 215 x 65mm soft rubber
– Wheel rim: Plastic
– Extended length: 250mm
– Weight: 5kg
Key Features
- Ideal for use with trailers
- 48mm diameter shaft
- 215 x 65mm soft rubber wheel with plastic rim
- Hot-dip galvanised (up to 70 μm) for high level of corrosion protection
- 150kg (Max.) Stationary nose weight
- 90kg (Max.) Manoeuvring nose weight
- Extended length: 250mm
Specifications
| Brand | AL-KO |
| Type | Jockey Wheels |
| Model | Plus |
| Size | Wheel: 215 x 65mm |
| Weight | 5kg |
| Maximum Load | Stationary: 150kg, Manoeuvring: 90kg |
| Diameter | Shaft (tube): 48mm |
Download the technical drawing
