75L Underslung Fresh Water Tank Nut-in Kit VW Crafter 2017 FWD MWB LWB Campervan – Grey Filler

Description

75 Litre Underslung Fresh Water Tank FULL KIT for VW Crafter Man TGE 2017 onwards– Fits FWD MWB & LWB with Grey Filler Nut-in Fittings Hatch

Medium and Long Wheelbase Models Only – Grey Filler

Does not fit models with twin sliding doors

Fresh Tank – Nut-in fittings and hatch supplied – Galvanised Brackets and fixings – Grey Filler

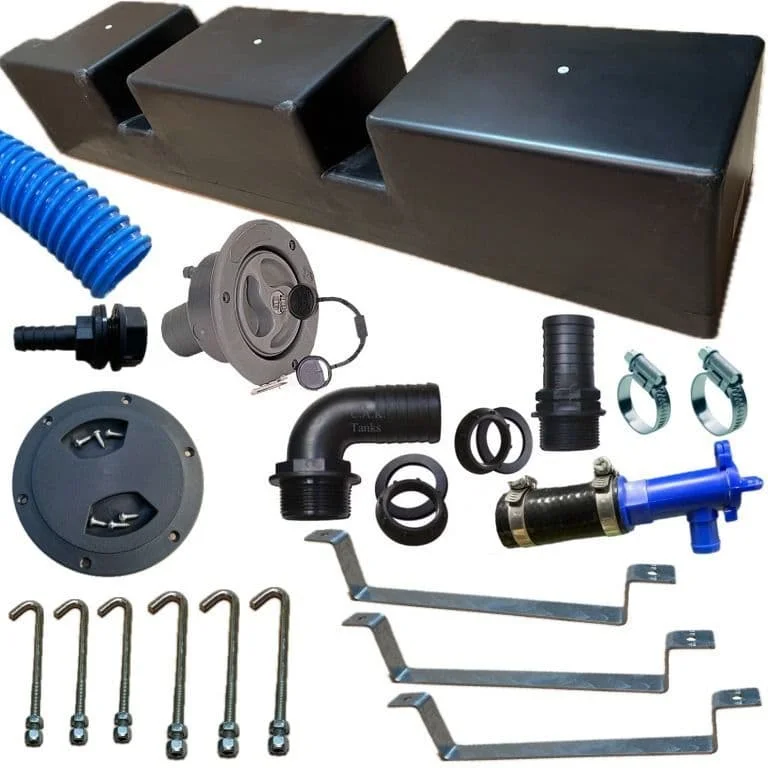

KIT CONTAINS:-

• 1 x CAK- 238 Fresh Water Tank 75 Litre with 3 breathers
• 1 x set of 3 custom made galvanised steel brackets
• 3 x 5” hookbolts with locking nuts
• 3 x 6” hookbolts with locking nuts
• 2m x 40mm blue Supaflex hose with 2 x hose clips
• 1 x drain tap with short hose and 2 x hose clips
• Locking filler with cap with 2 keys
• 1 x 40mm elbow fitting
• 1 x 25mm straight fitting
• 1 x 12mm straight fitting
• 1 x 4” hatch (must be fitted at top of tank)

This fresh tank is designed to fit along the driver’s side sill behind the driver’s door.  Capacity of 75 litres.

Fixing kit supplied with 3 x galvanised brackets, 3 x 5 inch hookbolts and 3 x 6 inch hookbolts all with locking nuts.

The sill side of the brackets require the 6 inch hookbolts and the chassis side of the brackets require the 5 inch hookbolts.

All sill side 6” hookbolts hook into pre-existing sill bungs.  Remove bung, hook in, then replace bung with small notch cut to allow for hookbolt.

All chassis side 5” hookbolts hook into pre existing holes in the base of the chassis.

Three nut-in fittings included.  1 x 40mm elbow for inlet, 1 x 25mm straight fitting for drain and 1 x 12mm fitting for outlet to pump.

Recommend the use of smooth bore supaflex hose which is ultra flexible.

This tank can also be used for fresh pressure fill (back fill) or for waste with pre-welded fittings.  Available with white or grey filler.  See separate listings.

OPTIONALS:-

• 1x Fresh Water Level Gauge with Read out Panel (MTT/G)
• Defrost element (DFE-02)
